| Place of Origin | Hebei,China |
| Certification | ISO9001 |

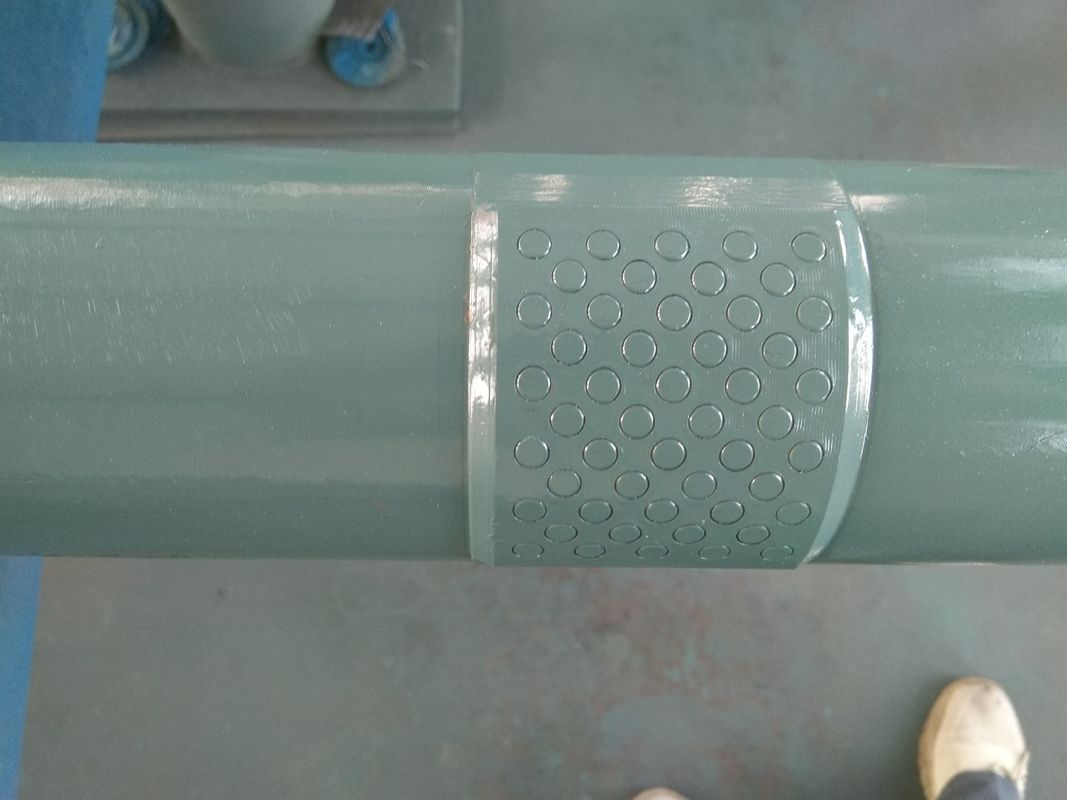

3-3/4" (95mm) Down Hole Motor For Horizontal Directional Drilling (HDD)
Compare to the traditional trenching method Horizontal Directional Drilling (HDD) becomes more and more popular especially in urban construction, river and road crossing because it is more environment friendly and lower operation cost. Earth drilling tools in previous HDD projects can not meet the requirements of pipe line construction as the rock appears more and more frequently. A rock drilling tool is eagerly needed. Downhole motor which is used in oil and gas well directional drilling is introduced into HDD projects and plays a more and more important role in nowadays HDD rock drilling projects. We would like to discuss the project problem with customers and provide the most suitable rock drilling tools not only include downhole motor but also other related drilling tools such reamers, drill bits, probe cavity and so on.
Availability of Conventional Downhole Motors:
| Downhole Motor Specification | OD | Bit Size | Connection | Lobe | Stage | Flow Rate | RPM | Working Pressure Drop | Output Toque | Max Pressure Drop | Max Toque | Operating WOB | Max WOB | Output Power | |||||||||||
| mm | In | mm | In | Top | Bottom | Lpm | Gpm | MPa | Psi | N.m | lb-ft | MPa | Psi | N.m | lb-ft | kN | lb | kN | lb | KW | HP | ||||
| 7LZ95x7.0-3-600 | 95 | 3-3/4 | 118~149 | 4-5/8~5-7/8 | 2-7/8REG | 2-7/8REG | 7:8 | 3.0 | 300~720 | 79~190 | 103~248 | 3 | 435 | 1108 | 818 | 4 | 523 | 1551 | 1145 | 25 | 5620 | 50 | 11240 | 29 | 39 |
| 7LZ95x7.0-4.3-600 | 95 | 3-3/4 | 118~149 | 4-5/8~5-7/8 | 2-7/8REG | 2-7/8REG | 7:8 | 4.3 | 300~720 | 79~190 | 103~248 | 4 | 624 | 1588 | 1172 | 5 | 749 | 2223 | 1641 | 25 | 5620 | 50 | 11240 | 41 | 56 |
