HDD Sonde Housing
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |

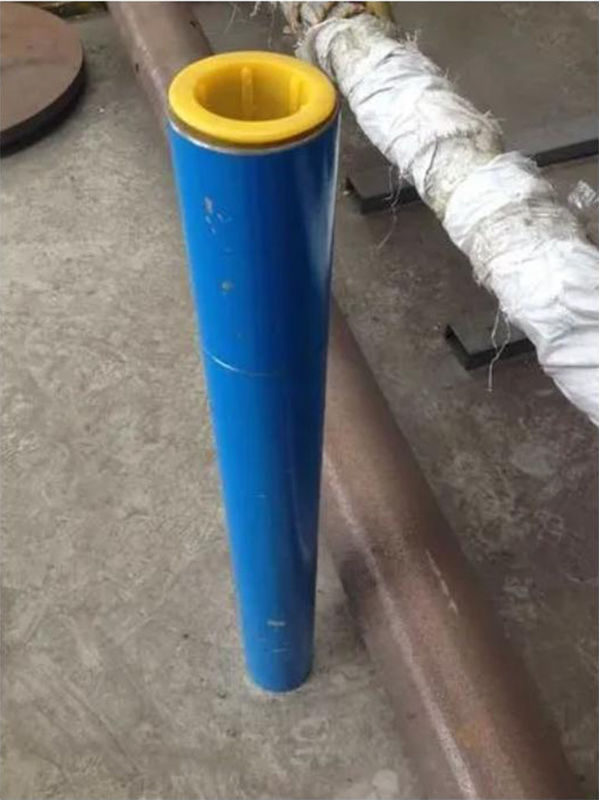

4th Generation Sonde Housing for Horizontal Directional Drilling (HDD)
Our 4th generation sonde housing is our latest products with the features such as:
- Small signal resistance improves the accuracy of guidance
- Larger drilling fluid passing area allows a larger flow rate and lower down the pressure of mud pump
- Improves the sand returning capacity
- Impact obsorption equipment in the housing protects the probe and extends its working life
- Reasonable design makes the working life longer than before.
Parameters
|
Model
|
Matched Mud Motor Size | Torque | Weigth On Bit | Length |
Weight |
Probe Size Matched |
|
95 SH95 |
95mm | 6000 Nm | 50(KN) | 1150 mm | 62kgs | ￠32x483 mm |
| ￠32x381 mm | ||||||
|
120 SH120 |
120mm | 10000 Nm | 80(KN) | 1020 mm | 67kgs | ￠32x483 mm |
| ￠32x381 mm | ||||||
|
165 SH165 |
165mm | 18000 Nm | 100(KN) | 1135 mm | 130kgs | ￠32x483 mm |
| ￠32x381 mm | ||||||
|
165 SH165 |
172mm | 18000 Nm | 100(KN) | 1135 mm | 130kgs | ￠32x483 mm |
| ￠32x381 mm |
