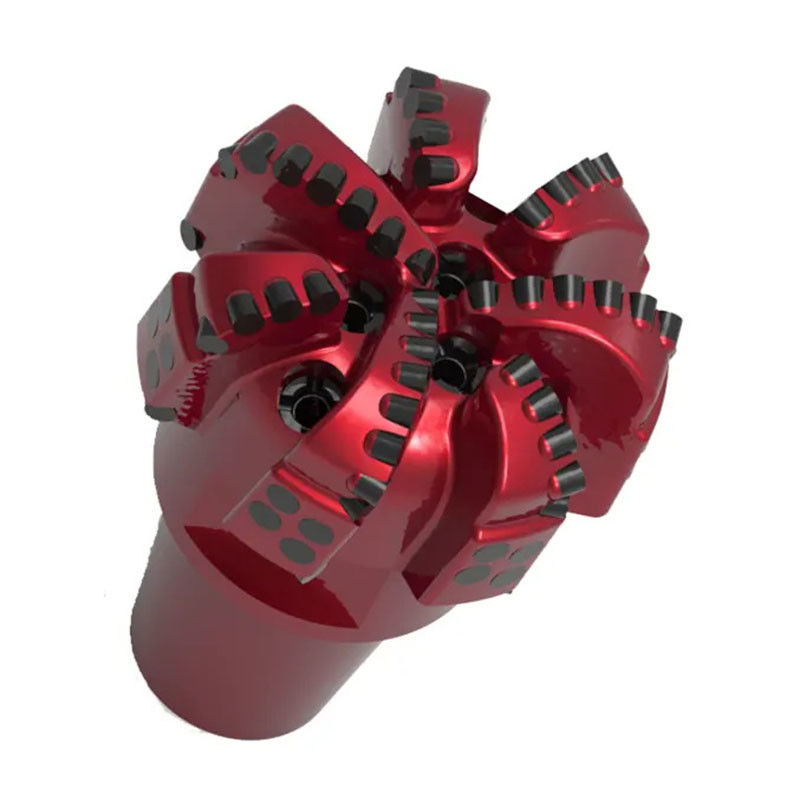

Tungsten Carbide PDC Bit 8 1/2'' For Explorer Well Drilling
  • Tungsten Carbide PDC Bit 8 1/2'' For Explorer Well Drilling
  • Tungsten Carbide PDC Bit 8 1/2'' For Explorer Well Drilling

Tungsten Carbide PDC Bit 8 1/2'' For Explorer Well Drilling

Place of Origin Hebei,China
Certification ISO9001
Product Details
Product Name:
PDC Bit
Applicable Industries:
Energy And Mining
Origin:
Hebei,China
Type:
Drill Bit
Machine Type:
Drilling Tools
Material:
High Manganese Steel
Processing Type:
Forging
Using:
Mining
Advantages:
High Efficiency
Bearing Type:
Rubber Sealed Bearings
Highlight:

Tungsten Carbide PDC Bit

,

PDC Bit 8 1/2''

,

Explorer polycrystalline diamond bit

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
According to customer needs
Delivery Time
5-15work days
Payment Terms
T/T
Supply Ability
30000PCs per Year
Product Description

High Quality Tungsten Carbide PDC Drill Bits For Oil Well Drilling




Introduction

The deep blade and medium parabolic configuration design ensures the best bottom hole flow pattern and ball resistance. Optimize the tool structure and place high-quality tools at different points. Increase the wear resistance and attack resistance of the drill bit.



Bit Size
8 1/2''
IADC Code
M423
Blade
5
Cutter Size
16mm13mm
Cutter Qty
16*30;138
Nozzle Qty
7NZ
Gauge Lenghth
65mm
Connection
4 1/2'' API REG
G.W./N.W,(KG)
90/75
Nozzle Size (inch)
16/32



Type and Features
PDC bit can be customized for oil well,water well, mining, explorer well drilling.
Suitable Formation
Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble.
Main Type
Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc.
Body Type: Matrix or Steel
Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc.
Blades:2~9 Wings.



Feature

1. The steel PDC drill bit is made of high-quality alloy steel.

2. Extensive tungsten carbide surfacing can extend the service life of drill bits.

3. High performance PDC tools can improve mechanical drilling speed and service life.

4.The optimal layout of blades and cutting tools improves mechanical stability and stability.

5. Optimized nozzle layout can improve the hydraulic performance of the drill bit





Tungsten Carbide PDC Bit 8 1/2'' For Explorer Well Drilling 0

High Quality HDD Drilling Tool HDD Non Excavation Drilling Mud Motor 1

High Quality HDD Drilling Tool HDD Non Excavation Drilling Mud Motor 2





FAQ



1. How to order the products?

A: Please send the inquiry with detail item description or with Model number.



2. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.



3. Can I expect a quality products?

A: Yes. mature production technology ensuring the quality satisfy international request.



4. How to check the product are the exact one you want?

A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.



5. How to control quality?

A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.



6. Fast delivery time:

A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.



7. Competitive price:

A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
